| Type | Container House |
|---|---|
| Status | |
| Brand Name | Luxury Prefab Villa |
| Model Number | 20-Foot Double Wing Expandable Container House |
| MOQ | Two |
| Packaging Details | 40 Feet High Cabinet |
| Payment Terms | L/C, T/T |
- 2
- 1
- 1
- 146 Sq Ft
The 20-foot container house is an architectural form that combines the durability of the container with the concept of modern fine decoration. It is on the basis of the ordinary version, a full range of upgrades, this container house box structure mainly uses graphene EPS bamboo and wood fiber integrated board + corrugated veneer, the wall is upgraded to graphene EPS bamboo and wood fiber integrated board + metal carving board, the wall is a six-layer structure, more durable. The floor is mainly made of bamboo plywood. The doors and Windows are made of broken bridge aluminum with good thermal insulation function. The bathroom has also been upgraded to dry and wet separation.
Characteristics and advantages
Convenience: Due to the modular design of the container house, it is very convenient to transport, install and disassemble. Whether it is for temporary accommodation or commercial use, the demand can be met quickly.
Cost effective: Compared to traditional civil construction, container houses cost less and have a shorter construction period. It is a very affordable option for customers who need to put up temporary buildings quickly or who are on a limited budget.
Environmental protection: The reuse of container houses reduces resource waste and environmental pollution, in line with the concept of sustainable development.
Flexibility: Container houses can be customized and transformed according to different needs to meet the requirements of various scenarios.
Configuration Parameter
Product model | 20 feet | House type | One Hall |
Expanded size | L5900*W6300*H2480 | Number of people accommodated | 2-4people |
Internal dimensions | L5460*W6140*H2240 | Power consumption | 12KW |
Folded Size | L5900*W2200*H2480 | Total net weight | 2.8 tons |
Floor area | 37 square meter | ||
20-Foot Double Wing Expandable Container House Frame Diagram |  |

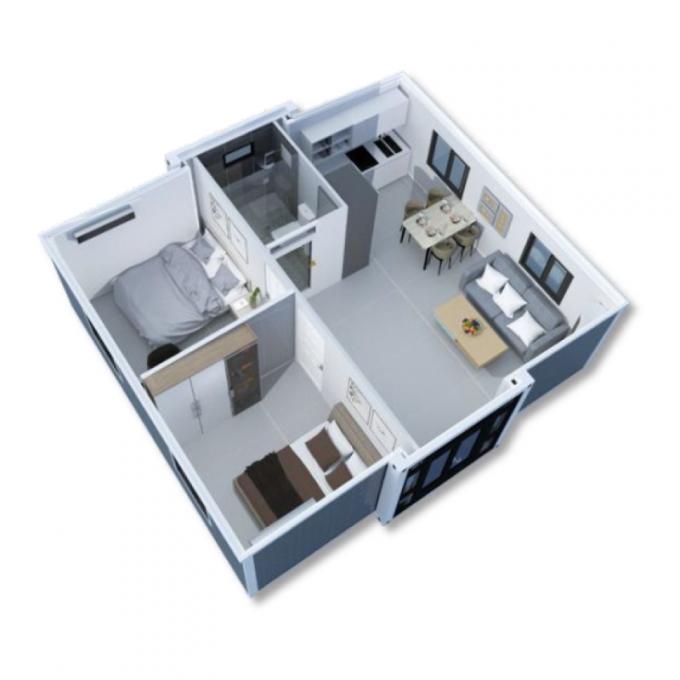

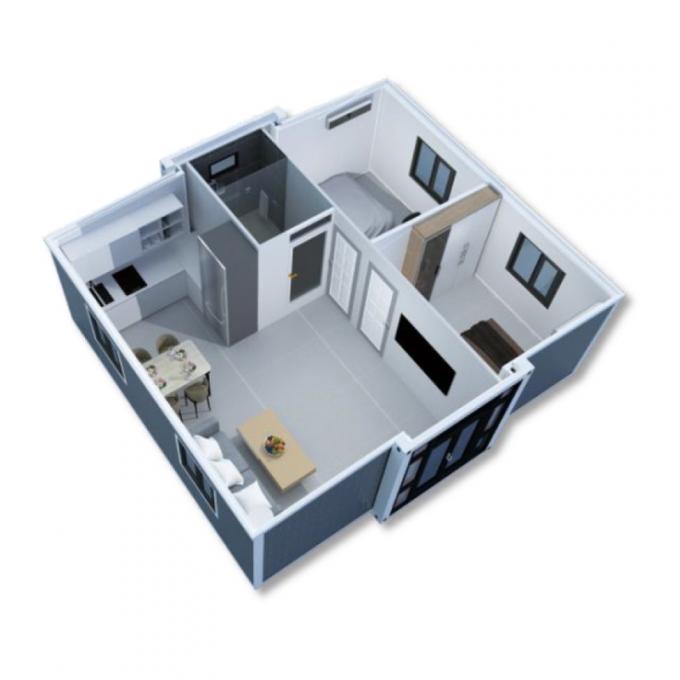

| 20-Foot Double Wing Expandable Container House layout |   |

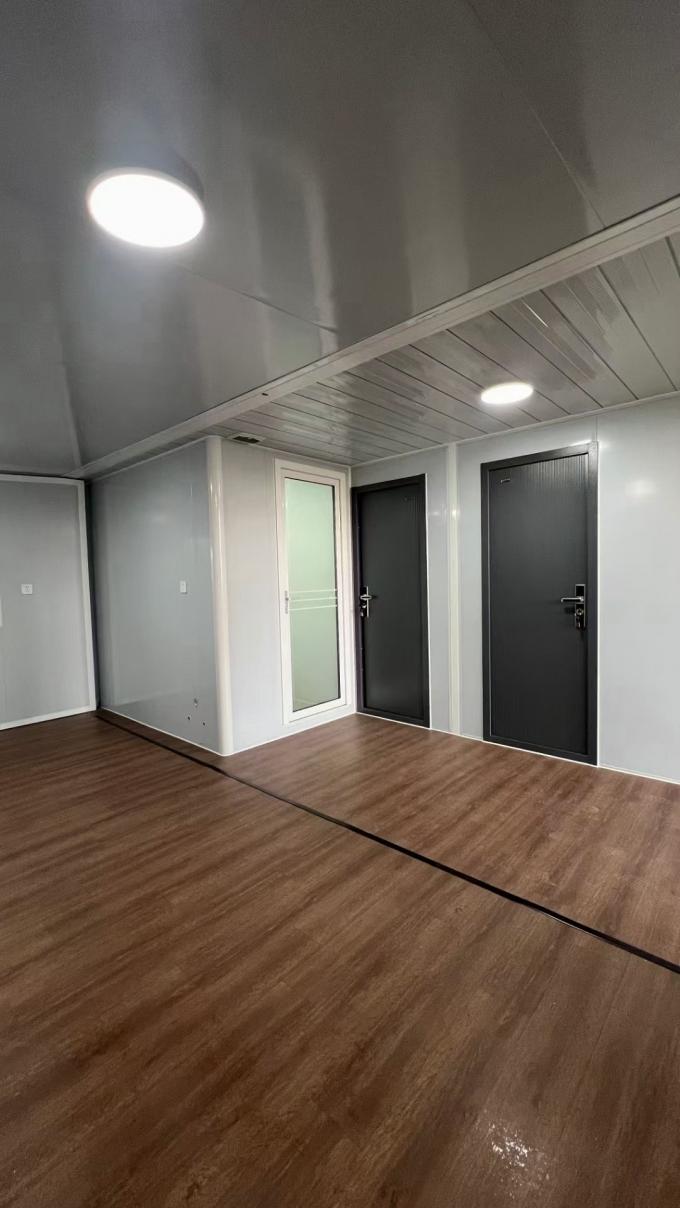

| 20-Foot Double Wing Expandable Container House Inside Finish |    |
| Physical picture of 20-foot expendable container house |  |
| 20-Foot Double Wing Expandable Container House Frame Structure | ||
| Name | Content | Specifications |
| Main farme(fully galvanized) | Top side beam | 80*140*2.5mm square tube |
| Top beam | Bending parts 2.0mm | |
| Bottom side beam | 80*100*2.5mm square tube | |
| Bottom beam | Bending piece 2.0mm | |
| Galvanized hanging head | Gabvanized hanging head 210*150*160 | |
| Steel column | Bending parts 2.0mm | |
| Side frame(fully galvanized) | Top frame | 40*80*1.5mm p-shaped pipe |
| 40*80*1.8mm Square tube | ||
| Bottom frame | 60*80*2.5mm Square tube | |
| Folding hinge | 130mm Galvanized hinge | |
| Overall framework protective coating | Spray | Electrostatic spray molding/Colour |
| Roof | Extemal top plate | 950-50mm thick double-sided 0.3mm, graphene EPS bamboo and wood fiber integrated board + corrugated veneer t0.45mm |
| Internal ceiling panels | 950-50mm thick double-sided 0.3mm, graphene EPS bamboo and wood fiber integrated board + corrugated veneer t0.45mm | |
| Two wings external roof panels | Type 50-65mm thick double-sided 0.3mm, graphene EPS bamboo fiber integrated board + corrugated veneer t0.45mm | |
| Wallboard | Side walls, front and rear | 950 type -50mm thick double-sided 0.3mm graphene EPS bamboo and wood fiber integrated board + metal carving board |
| Inner partition board | Graphene EPS bamboo and wood fiber integrated board | |
| Ground | Main Frame | Bamboo Plywood |
| Both Wings | Bamboo plywood | |
| Toilet | Bamboo plywood | |
| Decorative floor | SPC stone plastic floor | |
| Doors and windows | Broken bridge aluminum double door 1 diaphragm | |
| Broken bridge aluminum Windows 4 sets | ||

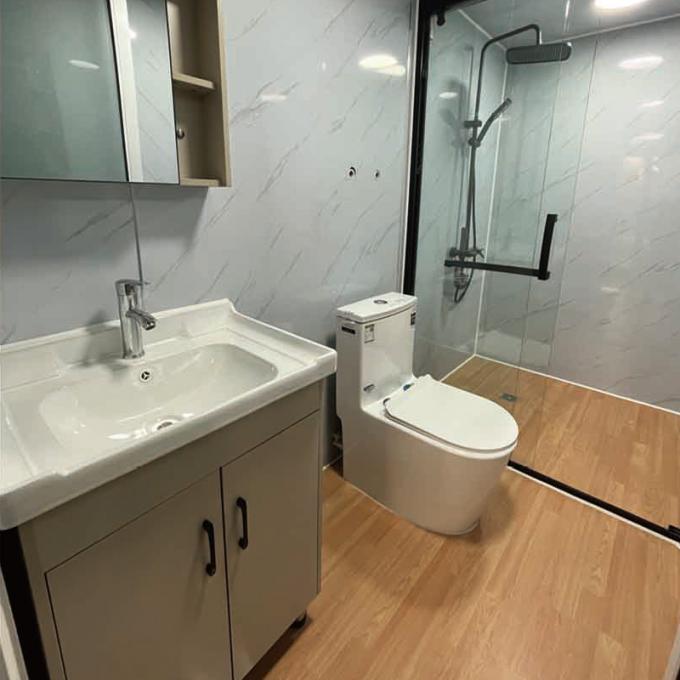

| Toilet | Dry and wet separation bathroom | |

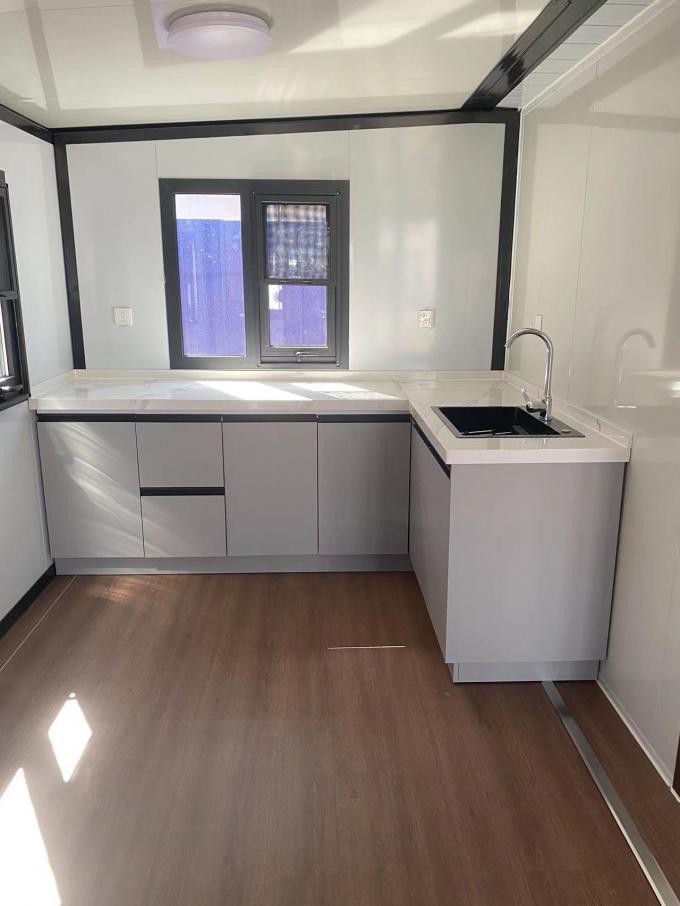

| Kitchen Cabinet | Floor cabinet + hanging cabinet | |
| Electrical system | Circuit breaker system | One 32A leakage protector, Voltage 220V, 50HZ |
| Light | Bull 30*30 flat lamp, large ceiling lamp | |
| Socket | Standard international three hole and five hole sockets | |
| (sacket standards can be configured according to customer requirements) | ||
| light switch | Double open, single key switch(switch standard can be configured according to customer requirements) | |
| Wiring | Incoming line 62, Air conditioning socket 42, Ordinary socket 2.52,Lighting 1.52. | |
| Circuit that meets certification reguirements can be customized according to the country | ||
| Mountings | Includes top corner wire, kicker wire, wrapping Angle, waterproof tape, sling, structural glue, glue gun | |
| Loading Quantity | 1 40HQ shipping container can hold 2 sets. | |
